My weekend was a busy one. With winter coming so are my winter horse boarders. This year I ended up filling up my 20×35 run-in shed with hay which means I needed a place for the horses to get out of the wind, rain, and snow. The problem? Yeah I’m broke. So after researching shelters that are frequently used for alpacas, sheep, goats, and other small livestock I got to thinking; Why can’t it be modified for horses? The general idea was to use cattle panels for a shelter as I saw at this site.
Saturday morning I woke up with an “ah ha” moment on how to modify the cattle panel shelter for horses. The idea was to sink some wood posts, use 3/4″ plywood as a kick board, and attach the panels to that.
How to build the horse run-in shed shelter barn
My Supply List
- (8) pressure treated posts (round or 4×4 will work)
- (3) 3/4″ ply wood sheets – non treated ok if painted
- (3) Cattle Panels 52″ x 16′
- 12×16 heavy duty tarp
- box of 2″ screws
- box of fence staples
- 30 thick UV black cable ties 11″
- 100 8″ UV black cable ties
- Can of barn/fence paint
- Paint Brush

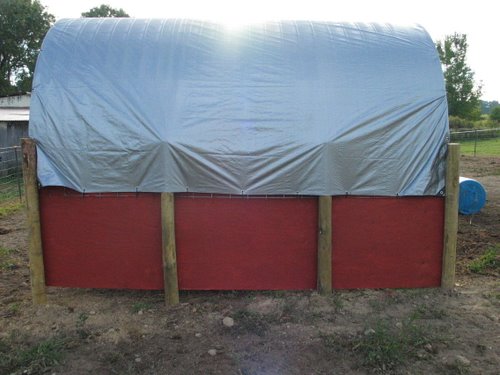

I placed the posts 4′ apart down the long side and 9′ wide. We get some good snow and wind storms so I didn’t want to put the posts any wider or the dome wouldn’t hold the wind/snow load. Once the posts were in I put up the ply wood and made sure it was level holding it up with just a couple of screws temporarily.

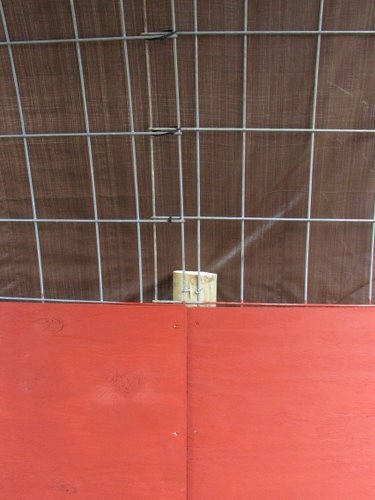

So far this was all a 1 person job. I needed help to put the cattle panels in place. We bent them up and placed them between the posts and the ply wood pushing them down 2 squares on each side and then screwed the plywood back to the posts. I also held the panels to the top of the posts with staples.

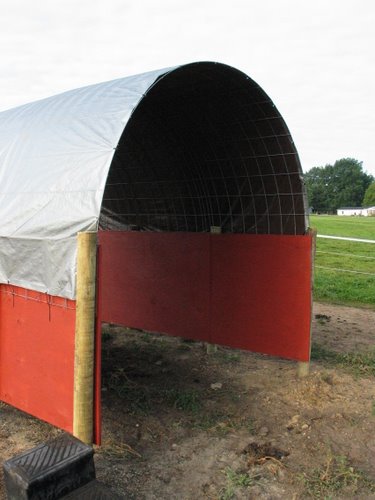

We over lapped the cattle panels as seen in the photos and secured them heavily with cable ties.

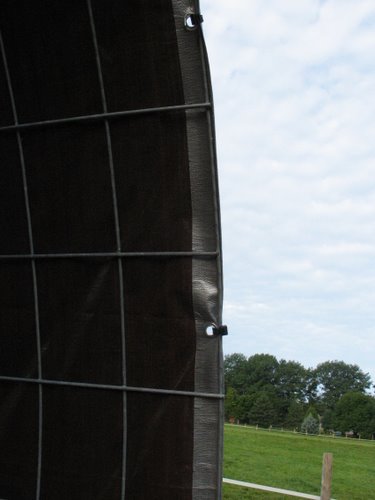

Putting the tarp on was easy, I unfolded it, tied a rope to the 2 end corners and threw the top over the dome and pulled the tarp up and over. I made sure it was even and secured it down with cable ties.
Finishing touch was to paint the plywood so it would weather better. You can paint the plywood before securing it but I really didn’t have a place to paint it first and found it easier to paint it after it was up and off the ground.
Cost: $250
Time: 4hrs – This assume you have a Post Hole Digger or Pounder on your tractor or have rented one.
—————————————————————
UPDATE: On 9/28-29/09 we had some nasty storms roll through. Sustained winds of 20mph and gusts fof 50mph. The shelter held fast and didn’t appear to even move in the wind. I thought the horses would be afraid of the sound of the tarp or the cattle panel roof as the wind hit it but nope. Even my scardy-cat took cover in the shelter. I have high hopes for it this winter. I do plan on brushing snow build up on it not to give it any excuse to sag.
————————————————————–
UPDATE: on 10/25/09 Well the winds have snapped off some of the thick cable ties holding the taprt to the cattle panels. I’ve decided to replace them with twine from my hay bales. I folded the twine in half and made sure the knot was tight. I’ve had twine hold a fence gate up for 2 years before it failed so there’s no doubt in my mind it’ll be up to the job of holding a tarp on.
————————————————————–
UPDATE: 12/5/09:
So far so good. We’ve been putting the Big Bale Buddy in the center of the run-in which is keeping the hay dry and allowing 4 horses, 2 on each side, eat without a problem.
————————————————————–
I like your design. We purchased a shelter logic tarp structure a few years ago, but it ripped apart in a bad wind storm.
I just wanted to point out that you can buy used billboard tarps on ebay. They are cheap, and you can find true heavy duty versions in HUGE sizes. The downside is that they have advertising on one site – so if anyone is afraid of looking “white-trashy”, this would probably put them over the edge. We used this type of tarp and lumber to repair our shelter logic mess. I’ve noticed that some of the heavy duty generic tarps I’ve purchased for other things have completely degraded in the sun after a few years, so I’m hoping this will last longer.
How do you feel about the space provided by your shelter? Now with a few years on it do you feel like you could have gone any wider than the 9′?
Did you cement the posts in?
No I did not. I tamped them back in with dirt. This was not meant to be a permanent shelter and I wanted the ability to remove it.
What an intriguing idea. Perfect for two horses. Thinking you could modify in an interesting way to accommodate three horses. What if you used only end posts on the South side and made those post higher. Attach the panels to a 2×6 ridge connecting the end posts. This would make the area of structure a little bigger and allow easier escape for my third horse. I love practical ideas and yours is wonderful.
I was wondering 2 things. At any point during the winter, did you have to bring your horses in from the cold? Is this shelter still standing?
Thanks!
The horses stay out 24/7 and I do not bring them in. They grow nice thick winter coats and have access to hay 24/7 as well to keep them warm even at -14 temps. The shelter lasted for 2 years before 12hrs of 70mph sustained winds followed by a wet heavy snow bet the cattle panels. No worries though, the panels and tarp are cheap to replace.
How did you bend the cattle panels so evenly?
Cattle Panels bend naturally that way, it doesn’t take any effort at all.
